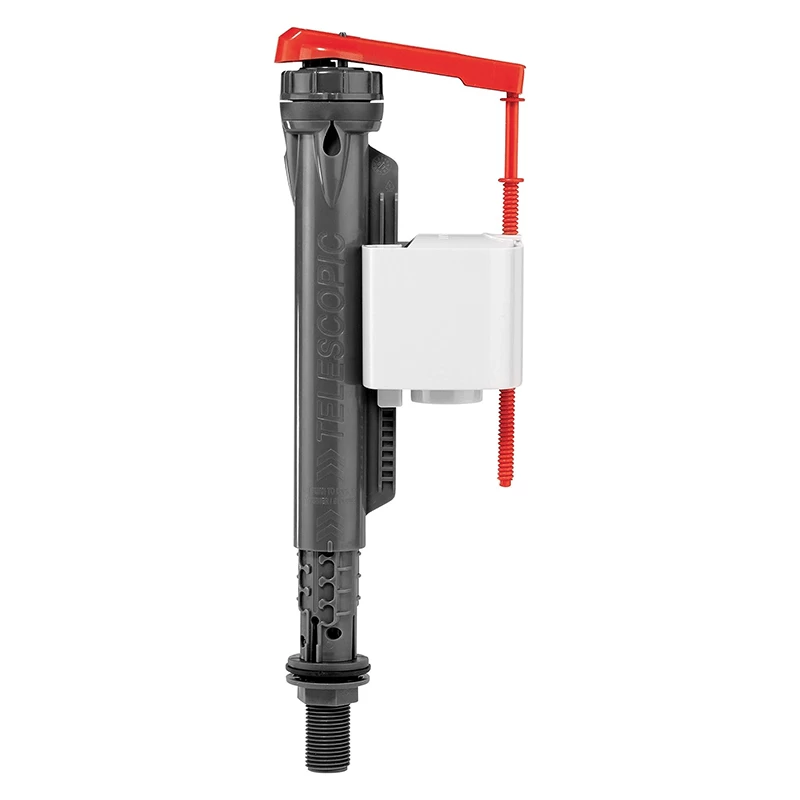

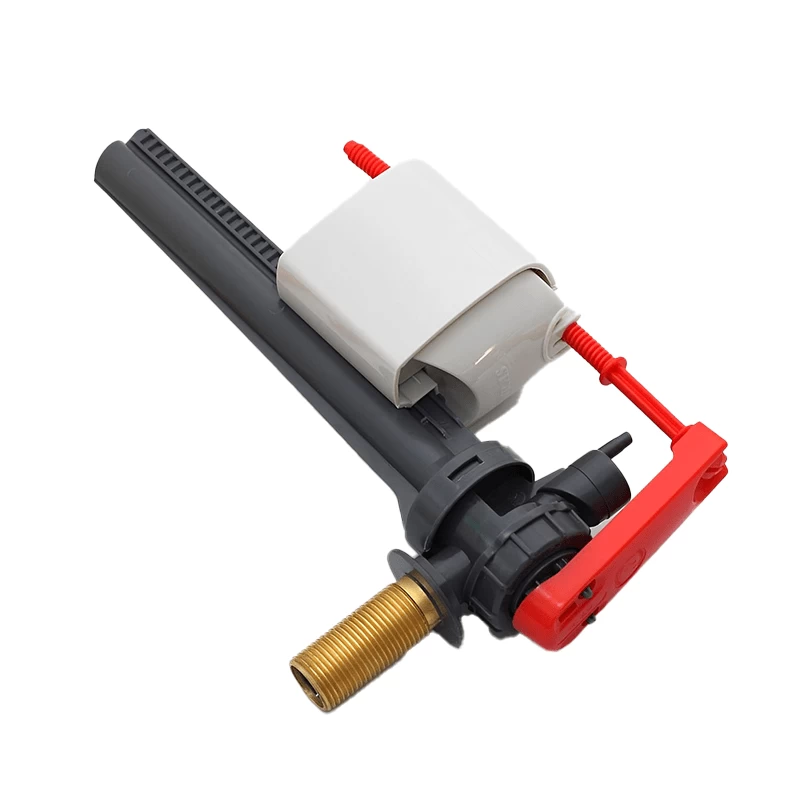

Wirquin Jollyfill BSP Telescopic Bottom Inlet Float Toilet Fill Valve – 1/2″

Description

Wirquin Jollyfill BSP Telescopic Bottom Inlet Float Toilet Fill Valve – 1/2″

High-quality telescopic Toilet Fill valve replacement with 1/2 Inch Plastic thread to allow installation in most standard toilet cisterns.

This toilet filling valve with fit into a toilet cistern with a height from the bottom of the cistern floor to the underside of the lid of up to 390mm. It only requires a width of 67.5mm.

This toilet fill valve replacement is ultra quiet (17 decibels) and also anti-siphoning to comply with modern water regulations.

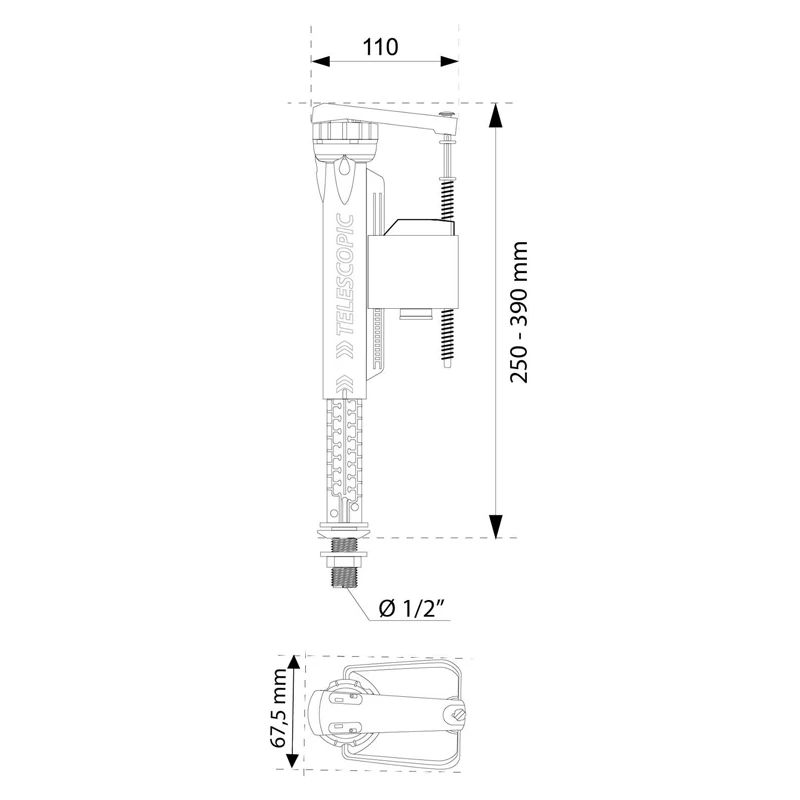

1/2 Inch BSP Plastic Thread with overall dimensions being 250mm to 390mm height by 110mm by 67.5 mm

Manufactured by Wirquin under the brand name Jollyfill

Technical Specifications:

• BSP Telescopic Valve
• Finish – Chrome Plated Brass
• The fill rate at 0.1 bars is 3.1 Litres per minute
• Eliminates water hammer
• Pressure of up to 20 bars
• Water Saving Delayed Action
• Will operate between 0.1 and 16 bars
• Brand – Wirquin
• Size – 1/2 Inch or 1.2″

Please Note: Most plumbing threads including those fitted to toilet fill valves are stated in BSP (British Standard Pipe) terms which differ from actual measurements.
As a general rule, the actual diameter of a BSP thread is approximately 1/4 inch greater than that stated. For example, this 1/2 Inch BSP thread actually measures approximately 3/4 inches.

Can’t find what you are looking for? Contact us on 01452 238287

Additional information

Weight	0.5 kg
Brand
Manufacturer Number
UPCEAN Number
Product Type	Bottom Inlet Fill Valve
Thread Size
