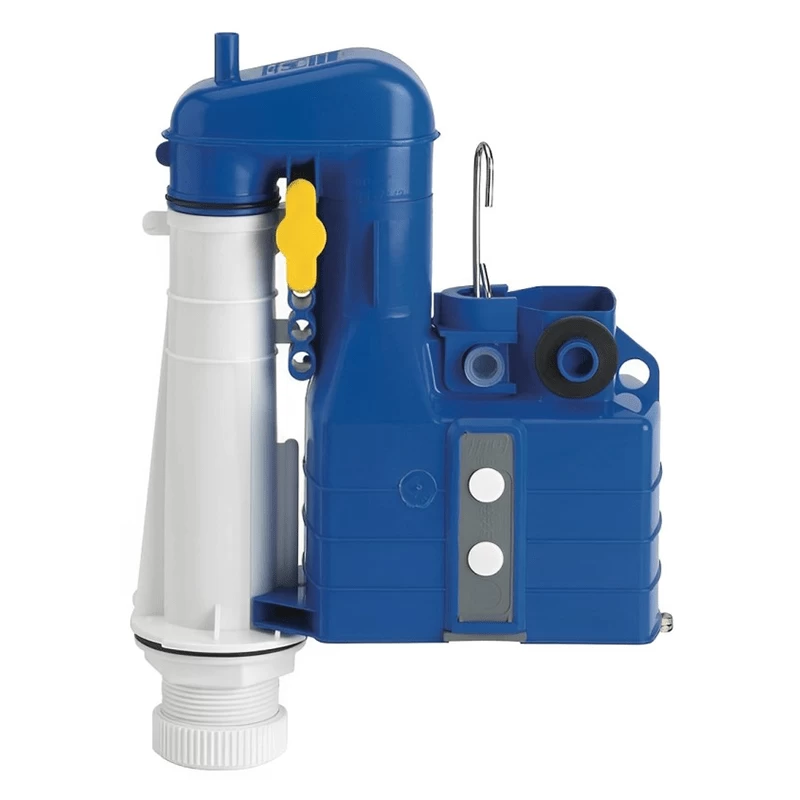

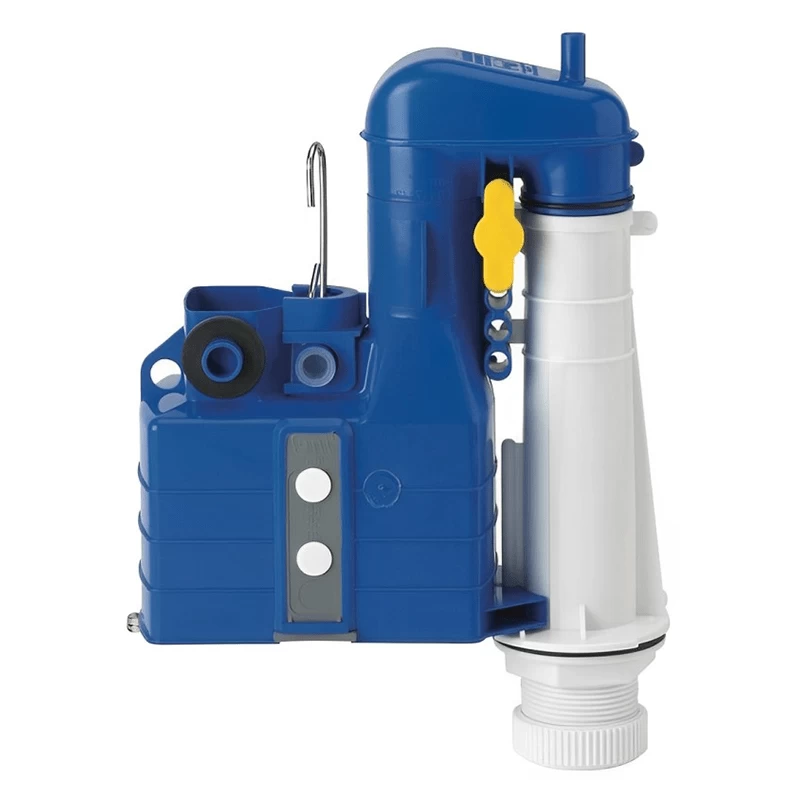

Thomas Dudley Ltd Turbo 88 Adjustable Syphon – 7.1/2″ – 9.1/2″

Description

Thomas Dudley Ltd Turbo 88 Adjustable Syphon – 7.1/2″ – 9.1/2″

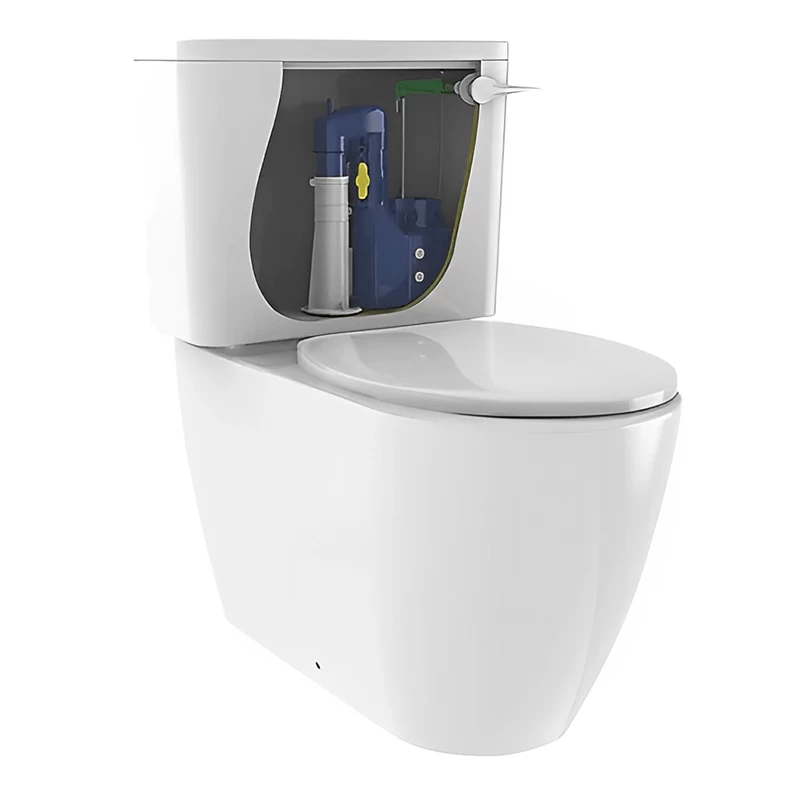

The Dudley Turbo 88 Syphon serves as an excellent replacement for syphons in most low-level lever-operated cisterns.

Its 2-part design allows for the straightforward removal of the syphon body from the cistern while leaving the white down leg in place.

You can complete servicing in less than 5 minutes without the need to disconnect the water supply or dismantle the cistern.

The Turbo 88 stands as a leading flushing syphon approved by WRAS, incorporating a patented Dudley Duoflush feature.

This feature enables a water-saving reduced flush when the cistern lever is depressed and held down. When the lever is depressed and then released, the Turbo 88 Duoflush delivers a full flush, which remains as reliable as ever.

Technical Specifications:

• Duo Flush Adjustable Siphon
• Finish – Blue
• 6, 7, or 9 Litre Volume
• Water Efficient
• 42mm 1.5″ diameter outlet
• Material – Plastic
• Easy to Install
• WRAS Approved
• Diameter Outlet – 38mm

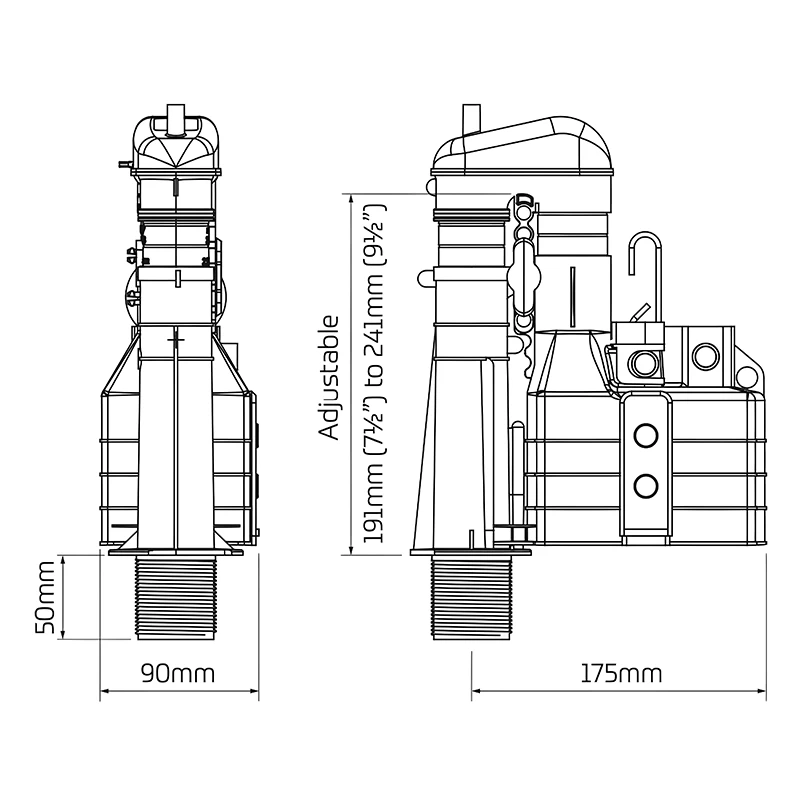

• Size – 7.1/2″ – 9.1/2″

Please Note: Most plumbing threads including those fitted to toilet fill valves are stated in BSP (British Standard Pipe) terms which differ from actual measurements.
As a general rule, the actual diameter of a BSP thread is about 1/4 inch greater than that stated. For example, this 1/2 Inch BSP thread actually measures about 3/4 inches.

Can’t find what you are looking for? Contact us on 01452 238287

Additional information

Weight	0.4 kg
Brand
Manufacturer Number
UPCEAN Number
Product Type	Cistern Syphon
Thread Size
