TALBOT Underground Stopcock Chamber – 20-32mm Stopcocks

Description

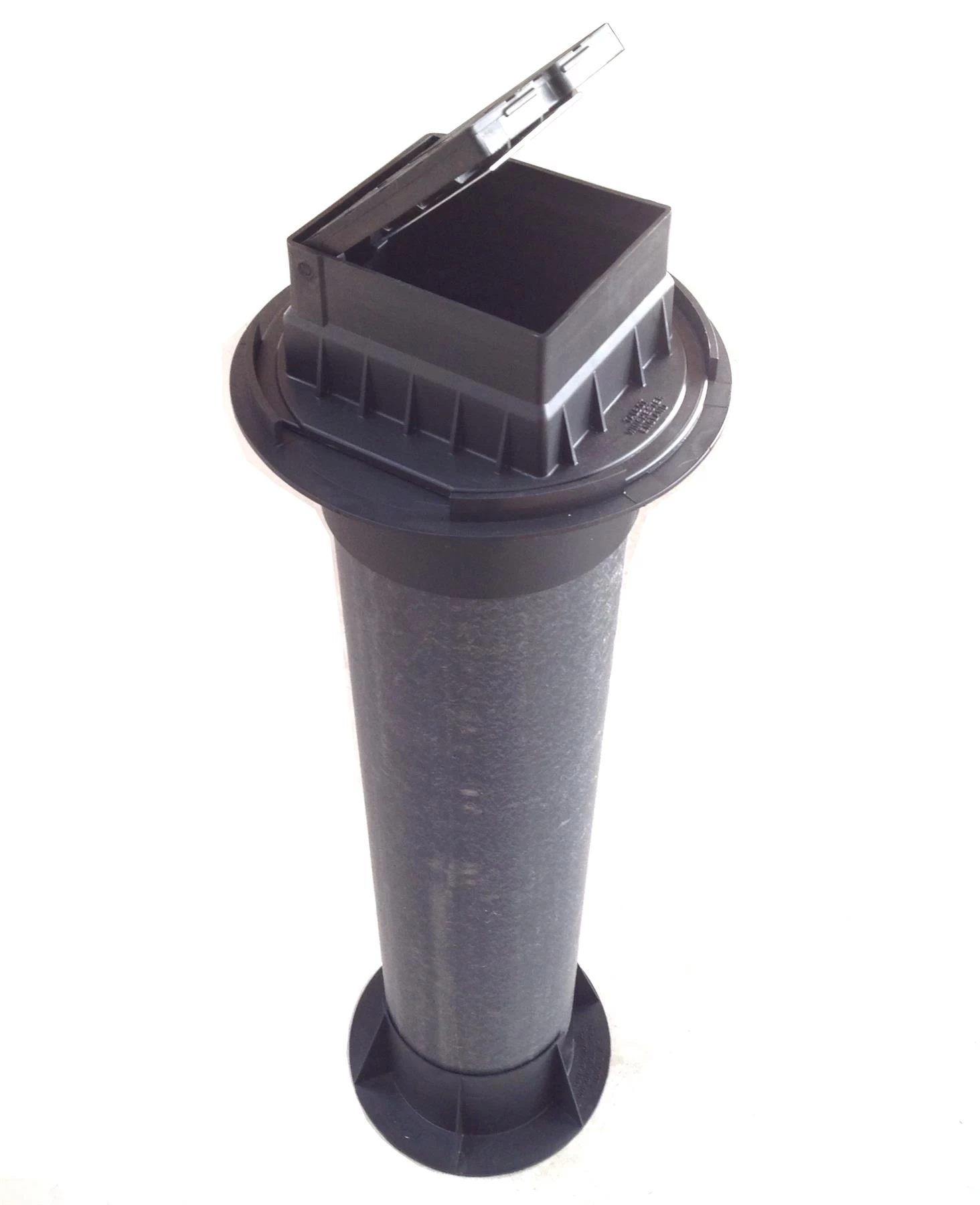

The TALBOT high quality stopcock chamber with a standard base is used for 20-32mm stop valves and has a 700mm tube with a Talbot product code of E3199.

Product Code – E3199

Pipe Size – 20mm-32mm stopcocks

Can be Dismantled – Yes

Includes – Base Plate, Surface Box Munting Plate, Surface Box (embossed with letter “W” and 700mm Tube

Talbot Stopcock Chamber for Small Stopcocks Technical Information

WRAS Approved	Yes
Height from base to top of surface box	870mm
Height from base to top of surface box mounting plate	795mm
Diameter of Tube	170mm
Size of Surface Box Opening	100mm x 100mm
Size Of Pipe Opening at Base	65mm (w) x 55mm (h)
Diameter of Base Plate	250mm
Diameter of Surface Box Mounting Plate	250mm



Additional information

Weight	2.2 kg
Brand
Manufacturer Number
UPCEAN Number
Product Type	MDPE Stop Tap, Stop Tap
