Stadium BM725 5 Inch Anti Draft Core Drill Vent

Description

This 5 inch 13kW STADIUM Stadium anti-draft vent has a built in anti draught baffle which is designed to reduce or stop wind blowing through the vent by its unique duct design. Install the Stadium anti-draft vent with a 127mm (5″) core drill. Unlike some other core drill air vents an extension tube is supplied with this core drill ventilator for walls over 9 inches up to a maximum of 23 inches.

The Stadium BM725 anti-draft vent should be installed as close to the appliance as possible and should be fitted as high up as possible. This ensures the cold air being drawn in mixes with the warm air at the top of the room.

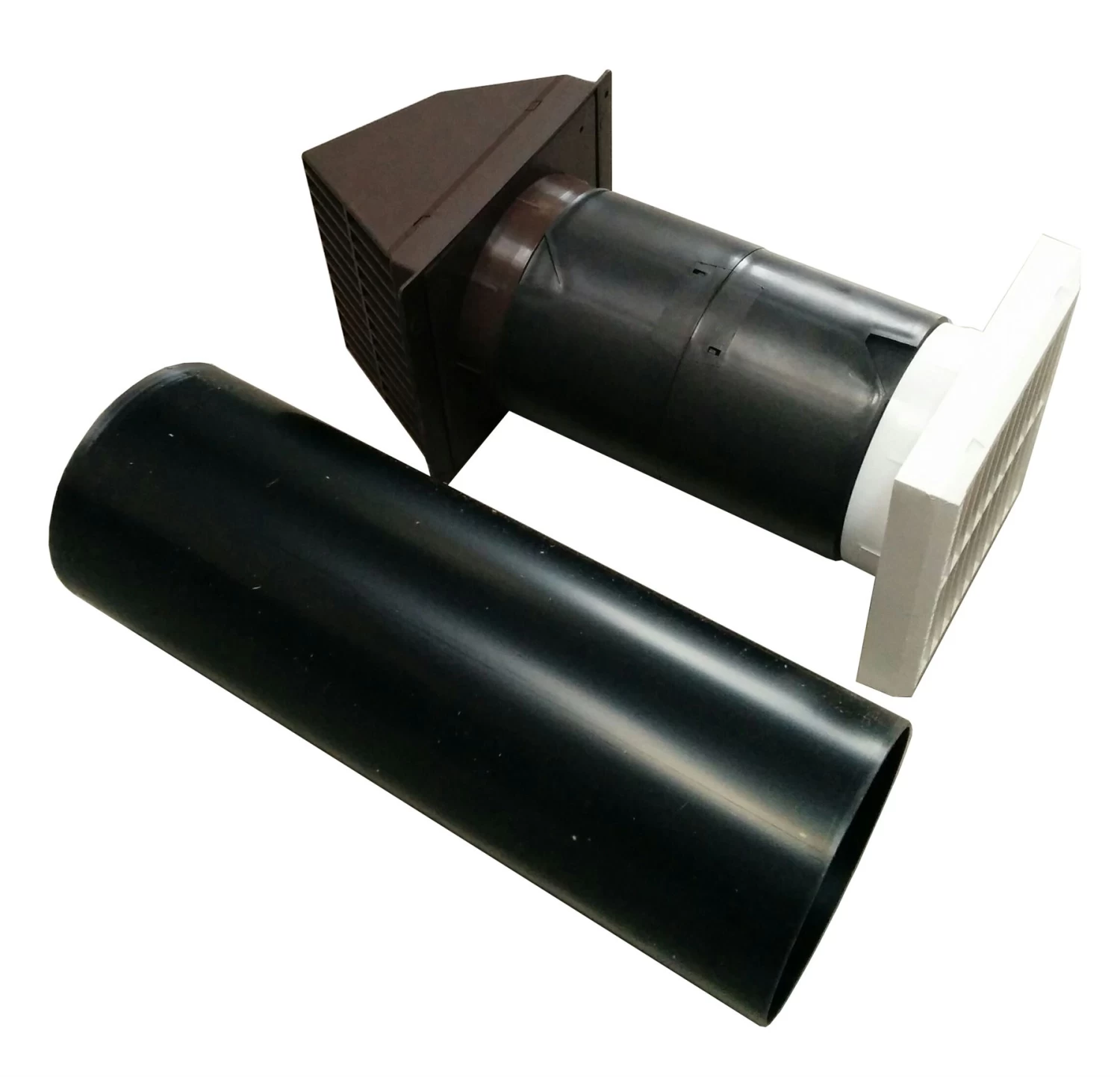

5 inch 13kW STADIUM Stadium anti-draft vent and extension piece.

• Tube length from 228mm to 585mm with extension tube is supplied with this core drill ventilator.
• Brown outer cowl and white inner grille.
• Fixed anti-draught baffles
• Free area cm2: 30cm2
• Rated Input – Max 13kW (44,000 Btu/h)

AS WITH ALL CORE DRILL AIR VENTS TO ENSURE THE VENTILATOR PROVIDES THE CORRECT AMOUNT OF AIR WHEN AN APPLIANCE IS OPERATING A SPILLAGE TEST SHOULD BE CARRIED OUT. THIS IS REQUIRED BY THE BRITISH STANDARD AND GAS SAFE GOOD PRACTICE.





Additional information

Weight	1.03 kg
Brand
Manufacturer Number
UPCEAN Number
Product Type	Anti Draft Vent, Black Hole Vent, Core Drill Vent
