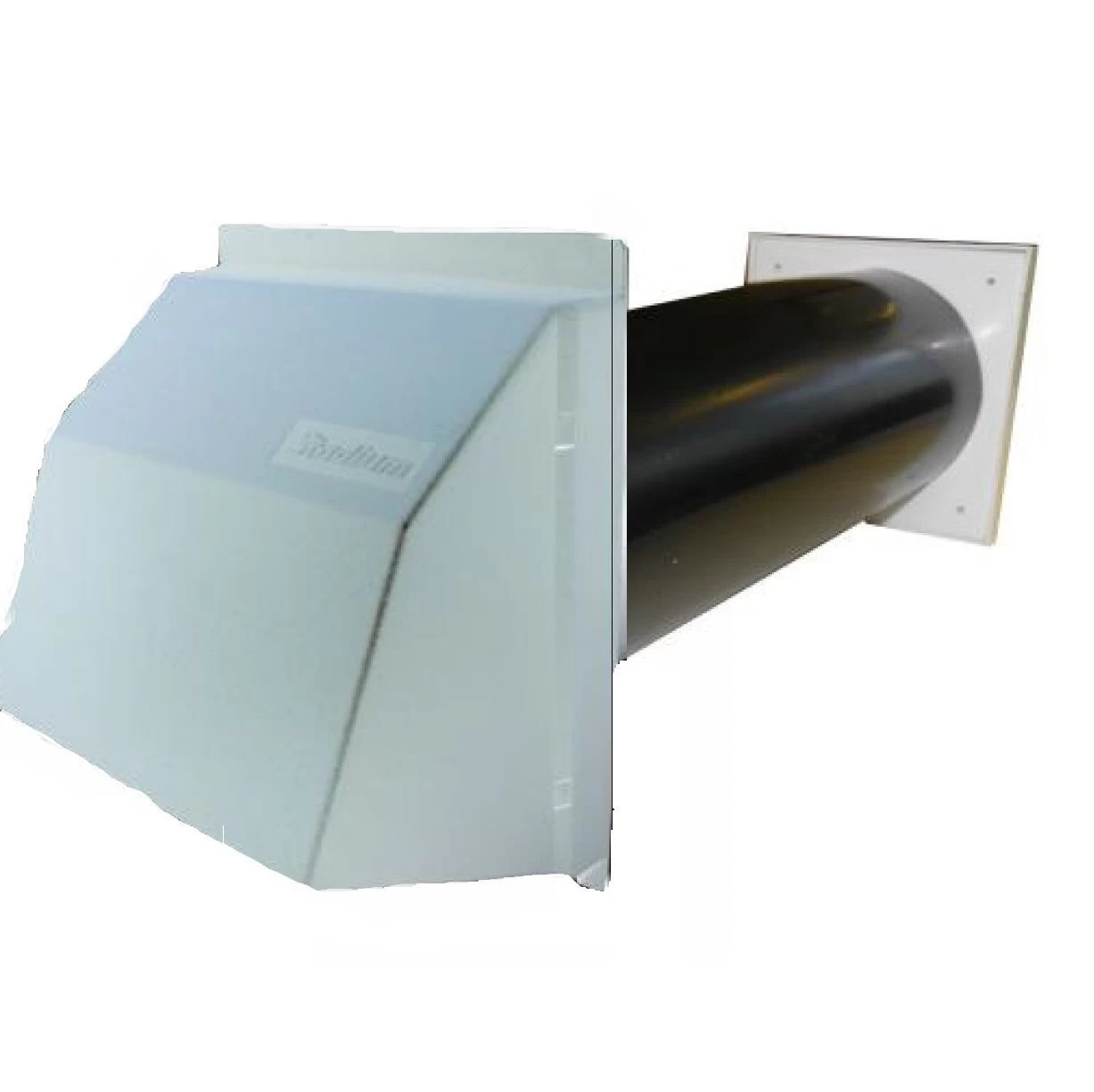

Stadium BM418W Core Drill Anti Draft Black Hole Vent (White Cowl)

Description

STAD BM418W core drill vent white outer cowl, white internal grille 5″ 71K, complete with anti-draft insert

Used for Domestic heating boilers and decorative fuel effect fires – Vario 100

100cm2 squared (removing baffle) adjustable to 70 cm2 squared effective free area (using supplied baffle) for maximum of 21kW input (72,000 Btu/h)

• Anti-draught baffle supplied which reduced the ‘Effective Free Area’.
• Takes extension tube BM810 to extend a further 1 metre.
• 127mm (5″) diameter

Rated Input Max 21kW (71,500 Btu/h) With Baffle
Length: 350mm (14″)

Tested and complies with BS5440 Part 2, 2000

TO ENSURE THE VENTILATOR PROVIDES THE CORRECT AMOUNT OF AIR WHEN AN APPLIANCE IS OPERATING IT IS IMPORTANT THAT A SPILLAGE TEST IS CARRIED OUT AS REQUIRED BY THE BRITISH STANDARD AND GAS SAFE GOOD PRACTICE.

Additional information

Weight	0.61 kg
Brand
Manufacturer Number
UPCEAN Number
Product Type	Anti Draft Vent, Black Hole Vent, Core Drill Vent
