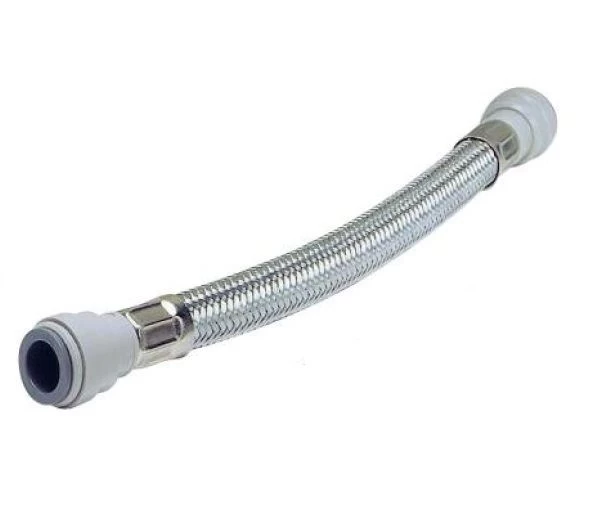

SPEEDFIT FLX26 22mm X 22mm X 300mm Flexible Hose

300mm SPEEDFIT Braided Hoses with a SPEEDFIT x SPEEDFIT configeration

There are two sizes of 300mm SPEEDFIT x SPEEDFIT Braided Hoses available in this section, with the manufacturers code shown below. By using these SPEEDFIT Braided Hoses to connect plastic to plastic pipe, copper to copper pipe or copper to plastic pipe, their is likely to be a dramatic decrease in installation time

• 15mm x 15mm x 300mm SPEEDFIT Braided Hose – SPEEDFIT x SPEEDFIT – FLX17

• 22mm x 22mm x 300mm SPEEDFIT Braided Hose – SPEEDFIT x SPEEDFIT   – FLX26


The 10mm, 15mm and 22mm dictates the sizes of the pipe connections

Please note that these flexible hoses are not suitable for central heating systems, they are used for hot and cold water tap supplies only with a maximum pressure of 6 bar @65 degrees centrigrade

SPEEDFIT push fit fittings have been designed and are manufactured in the UK by John Guest Speedfit. The fittings are used in the connection of copper to copper pipe, plastic to plastic pipe or copper to plastic pipe. The fittings simply push onto the pipe and then the plastic nut is twisted clockwise to lock the fitting in place. The pipe must be cut straight to ensure a good connection is made and a SPEEDFIT pipe cutting tool is available to ensure a parallel cut. Markings on SPEEDFIT pipe ensure that fittings are pushed home to the correct depth. Collets locking clips are clipped onto fittings to ensure that the collar does not inadvertantly release in the event of pipe or fitting movement, during or post installation. The SPEEDFIT range of fittings are fully demountable from the pipe without the use of a release tool, simply remove the locking clip (if fitted already) and push the fitting collet towards the body of the fitting and pull the pipe to release.

With all plastic pipes the relevant manufacturer’s pipe insert is required, standard insert for copper pipe, superseal for plastic pipe

SPEEDFIT fittings should not be used on stainless steel pipe, gas, fuel oil or compressed air installations and SPEEDFIT products should not be connected directly to a boiler

Due to the simplicity of the SPEEDFIT range, installation is often reduced by around 40% against traditional installation methods, and without the needs for hot works a safer environment is maintained

JG Speedfit is the easy to use, plastic push-fit system suitable for the plumbing of hot and cold water services and heating applications. The flexible piping system provides the ability to significantly reduce installation time without the need for specialist tools. The fittings can be demounted if required, are lead free, and remove the risk of any scale build up. Extensive tests have shown that Speedfit products will withstand temperatures and pressures well in excess of normal working conditions.

This information should be used as product guidance only and should not be used as a replacement for installation instructions. Please ensure to check with manufacturers instructions of all components prior to selection and installation to ensure compatibility and the most up to date product and installation information.
