MacDee Hideaway Black Cistern (Bottom Inlet Dual Overflow)

Description

THe Macdee Hideaway concealed cistern is a cost effective solution to installing a concealed cistern, particularly behind deeply ducted walls. This version, CFH16CP, has a 210mm long chrome placed handle to reach through deep wall cavities

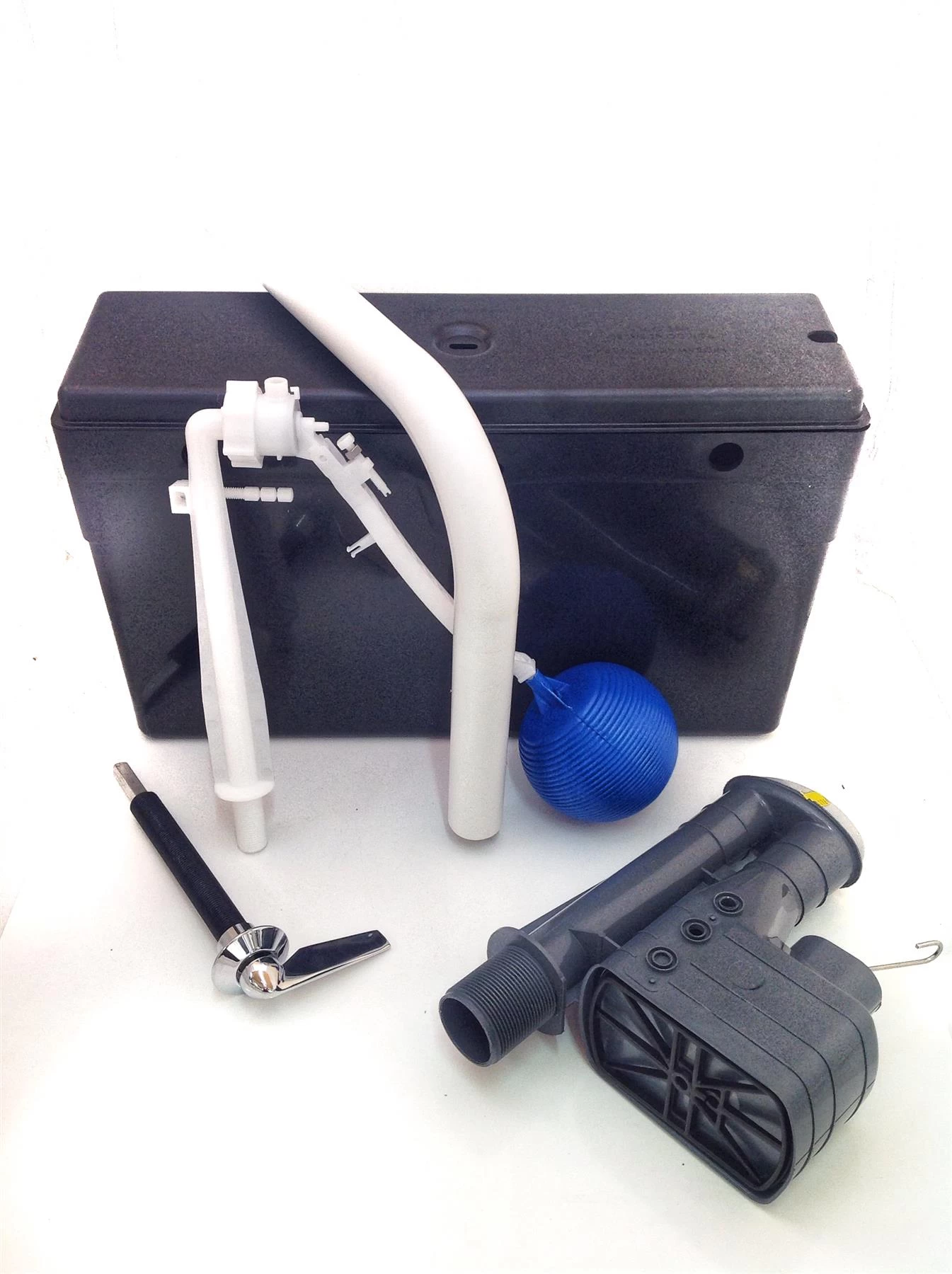

Whats Included in the Macdee Concealed Cistern – CFH16CP

Siphon – Water Saving Single Flush Metro Siphon with Internal Overflow

Filling Valve – Bottom Entry Silenta Part 3 Ball Valve with float

Flush Handle – 210mm long (spindle length) Chrome plated Lever

Flush Pipe for pan connection – Yes

Fittings and seals – Yes, included

Hideaway Concealed Cistern Technical Information

Outlet Hole Diameter	1 1/2″ BSP
Fill Volumes	6l, 7l and 9l Adjustable on siphon plugs
Dual Overflow	Yes, built into siphon
Width	505mm
Height	312mm
Depth	146mm
WRAS Approved	Yes



Additional information

Weight	2.3 kg
Brand
Manufacturer Number
UPCEAN Number
Product Type	Bottom Inlet Cistern
