Fluidmaster Flush Valve With Handle – PRO750UK

Description

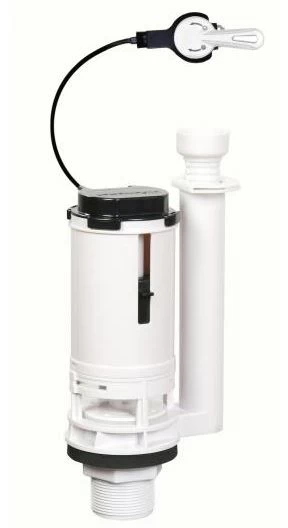

Fluidmaster Flush Valve with handle and model number PRO750UK and having a 1.5 inch BSP outlet and cable operated lever flush. It is a Fluidmaster lever dual flush valve meaning that the user can either opt for a full flush or a quick flush by either raising the handle or pulling it down for a full flush

• Replaces most traditional toilet flush syphons, fits virtually all toilet cisterns with a lever
• Preferred by professional plumbers
• Water saving adjustable flush volumes on full and reduced flushes
• Light touch operation
• Internal overflow, height adjustable from 8/5 to 13.5 inches
• Quick release cable/button connection system eliminates cable damage
• 1.5 inch outlet
• Twist and relase action enables the unit to be released from its base enabling simple maintenance with disassembly

Installation instructions of Fluidmaster Flush Valve with Handle – PRO750UK

• Turn off water supply
• Disconnect pipe work and if necessary remove cistern from bowl, remove old flush syphon
• Position the valve inside the cistern ensuring the 10mm internal seal washer is on the thread shank first
• Push down in the valve body and tighten the lock nut (if a close coupled plate is required for your cistern this should be installed on the threaded shank before the locknut)
• Refit cistern to existing bowl seat (donut washer) onto threaded end of flush valve.
• Refit cistern and pipework
• Remove existing flush handle and install new according to the options detailed on the assembly drawings supplied with the PRO750UK
• Ensure the cable runs smoothly and does not interfere with the workings of the Fluidmaster Flush Valve
• Attach the junction box onto the lever by pressing the relase clip, locating it in position and then releasing it

Additional information

Weight	0.48 kg
Brand
Manufacturer Number
UPCEAN Number
Product Type	Flush Valve
Thread Size
